For a buyer reviewing a sample or a technical complaint, the first task is to establish what was measured. A report labelled “disc variation” leaves too much unclear. This guide explains the records needed to interpret both checks. It supplies no universal acceptance limit, installation torque or diagnostic verdict for a MAKEXCAR reference.
Name the measurement before reading the result
Keep lateral runout and DTV in separate report fields. An entry should state the quantity, units, measurement method and test object. A single unlabeled result cannot explain whether a technician observed face movement, measured thickness differences or reported an entirely different check. Ask for clarification before transferring that result into a sample approval sheet.
HELLA's brake checking guidance treats lateral runout and non-uniform thickness as separate checks. It describes a dial gauge for the runout check and a micrometer-based thickness assessment. The important distinction is between the measured quantities; the article's example positions and values are not adopted here as universal requirements.
A report may also contain nominal disc thickness, minimum thickness or a hub runout result. Preserve their labels. They do not become DTV simply because they use the same unit. If the report mixes these records in one column, request a revised table that separates the requirement, the raw observation and the calculated summary.
Ask what the lateral runout setup includes
HELLA's lateral runout note describes checking the installed disc with a suitable dial gauge and gives precedence to vehicle-specific specifications. It also identifies the hub and bearing as additional areas to consider when deviations are found. An installed measurement therefore needs its mounting context recorded; the reading alone does not isolate the disc as a cause.
For report review, request the part reference, vehicle or fixture identity, mounting and retention description, instrument identification, contact location and the documented procedure used. Ask for photographs that identify the setup without substituting the photographs for the written method. Record whether the disc was new, previously used or altered before measurement.
If a factory report and a workshop report use different setups, label them accordingly. A fixture measurement and a vehicle-installed measurement should not be presented as an unexplained before-and-after comparison. Have the technical reviewer identify which requirement applies to each setup and whether the results can answer the same question.
Ask for the thickness readings behind DTV

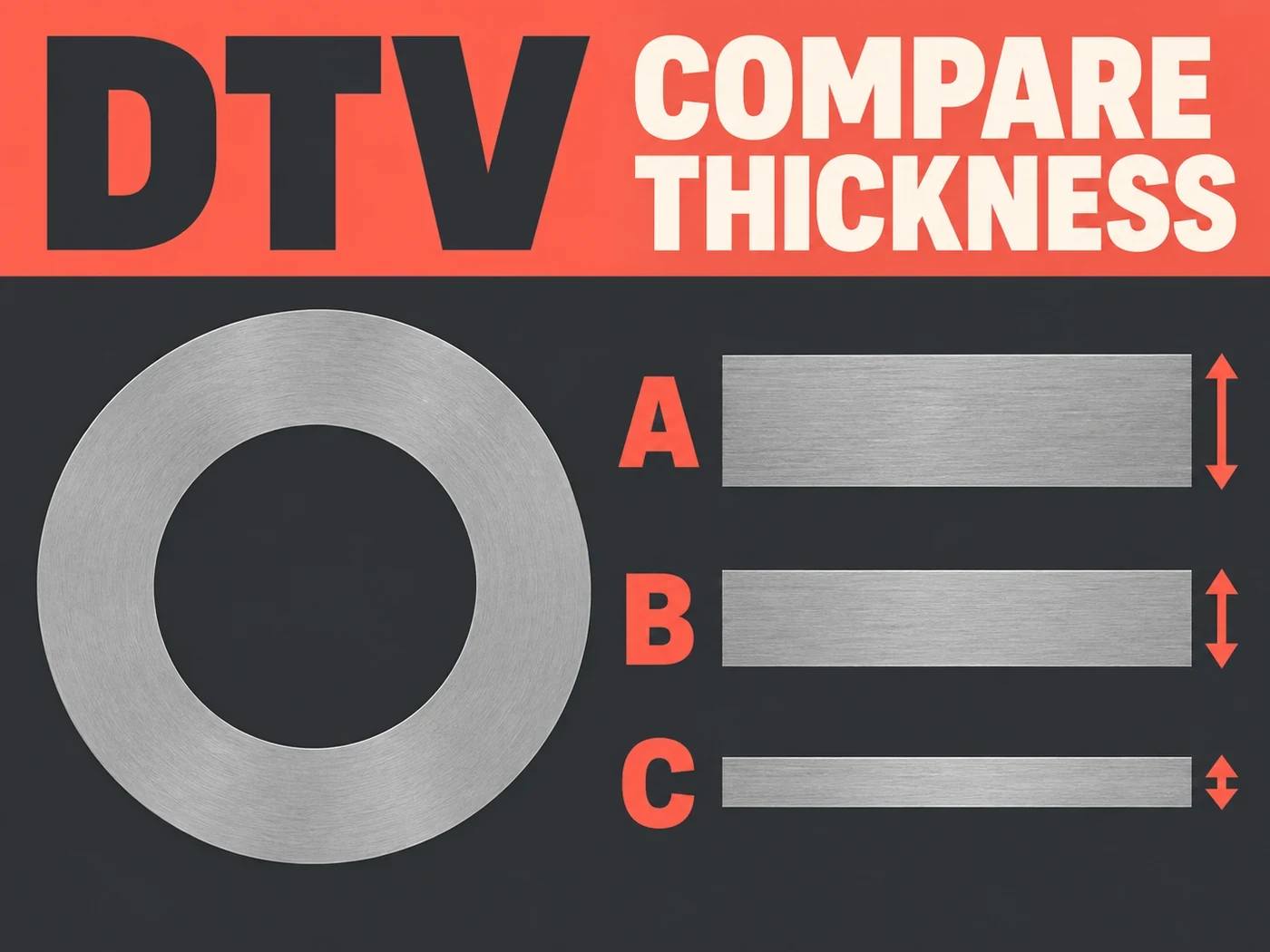

A DTV summary should be connected to its individual thickness observations. Request the measurement positions, the specified path or radius, the instrument and the method. Keep the positions identifiable in a table or annotated record. A thickness result without its location is difficult to compare with another result taken elsewhere.
Where the method defines DTV as the difference between the greatest and smallest recorded thicknesses, retain both extremes and the calculation with the raw readings. Do not assume that an unlabeled “variation” figure uses this definition. Ask the laboratory or workshop to confirm its calculation and the scope of the measurement.
Record how many positions were inspected under the applicable procedure and how those positions were identified. This article does not set a universal point count or measurement radius. Those details should follow the relevant method for the actual application. A convenient measurement location chosen after the result is known is not a clear basis for comparison.
Keep minimum thickness separate from thickness variation
Minimum thickness and DTV describe different records. One concerns the applicable thickness limit; the other concerns how thickness differs between measured positions under a defined method. A report should identify both when they are relevant, without using one result as a substitute for the other.
Request the source of each limit and identify whether it concerns a new part, a service inspection or another defined condition. A value from a different reference should not become the acceptance limit for your sample. The same caution applies to a general technical article that contains illustrative figures without covering your exact application.
Preserve the original units and reported precision when recording observations. If conversion is needed, show it separately and retain the original. Avoid changing the displayed number until it appears to agree with a limit. A technical reviewer should be able to follow the relationship between the raw record, the calculation and the decision.
Record the hub evidence as its own check
HELLA's wheel hub note discusses checking hub runout against the vehicle manufacturer's information and considering the contact surface condition. For a report reviewer, this supports asking for separate hub observations when they are relevant. It does not authorize applying the note's example value or replacing a hub based on this blog.
If a workshop inspected the hub, request its method and result under a separate heading. Keep photographs of the relevant contact surface identified by date and component. Do not describe a later cleaned surface as the original installation condition unless the record actually shows that condition.
A supplier should be able to distinguish a measured disc result from a measured hub result and from a hypothesis about their relationship. A technically plausible explanation still needs evidence for the case being reviewed. Use “not recorded” for missing hub information instead of assuming the hub was acceptable or defective.
Use a report comparison matrix
The following matrix is a proposed purchasing review tool. Fill it with actual records rather than invented values. Its purpose is to prevent two reports with different objects or methods from appearing directly comparable. Keep the original report attached so the matrix does not replace the evidence.
| Record | Lateral runout report | DTV report |
|---|---|---|
| Quantity | Defined face-position variation | Defined thickness variation |
| Object | Identified disc and mounting context | Identified friction ring and part condition |
| Instrument | Gauge identity and setup record | Thickness instrument identity and method |
| Location | Documented contact location | Documented thickness positions and path |
| Raw evidence | Observed readings or trace under the method | Individual position readings and calculation |
| Requirement | Applicable setup-specific source and limit | Applicable method-specific source and limit |
| Decision | Reviewer and scope of conclusion | Reviewer and scope of conclusion |
Add report date, revision and sample identity to both columns. If either column contains an unresolved field, identify the missing record in the review request. A clear missing-information list is more actionable than a general demand for a better test report.
Resolve mismatched reports with specific questions
Consider a workshop note that reports “runout” without a mounting description and a supplier sheet that reports “thickness passed” without individual readings. These records answer different, incomplete questions. Ask the workshop to identify its setup and requirement, and ask the supplier to identify its thickness method and result. Do not present either note as a rebuttal of the other.
If two runout reports disagree, compare their objects, condition, mounting context and methods before asking which number is correct. If two DTV reports disagree, identify the inspected positions and calculations. Preserve both originals and request a documented explanation of the discrepancy from the responsible technical reviewer.
Any repeat measurement should have a stated purpose and procedure. Record changes made between checks, such as a different fixture or a changed component condition, rather than hiding them in an informal retest. A result obtained after a change should remain connected to that change in the case history.
Keep a measurement conclusion separate from a cause conclusion
A report can show that a recorded result does or does not meet an identified requirement. That conclusion is narrower than explaining why the condition occurred or deciding warranty responsibility. Ask the reviewer to state which conclusion the evidence supports, and list any further investigation needed for the broader question.
For a vibration complaint, preserve the vehicle and symptom record alongside the measurements. Do not turn the symptom itself into a measured disc condition. Equally, do not dismiss a measured deviation because a generic factory certificate exists. Keep the evidence specific to the actual supplied reference and inspected unit.
A clear technical conclusion names the part, method, result, requirement and limitations. A separate commercial decision can then refer to that assessment and the agreed terms. Combining both into a single unexplained “disc faulty” label makes the record less useful for the buyer, supplier and workshop.
Check the calculation without inventing a pass limit
Consider a hypothetical extract from a thickness report with readings A = 20.004 mm, B = 20.010 mm and C = 20.007 mm. If the documented method defines variation as the maximum minus the minimum, the spread in this extract is 20.010 − 20.004 = 0.006 mm. This is an arithmetic example using invented observations, not a MAKEXCAR measurement, tolerance or required three-point procedure.
The calculation lets the buyer check that a summary matches the supplied observations. It cannot establish that the inspection covers all positions required by the real method, that the instrument was suitable, or that the disc passes. Keep the requirement field blank until the applicable document is identified. A correct subtraction and an unsupported acceptance threshold are different review outcomes.
The summary agrees but the inspected positions are unclear
Accept the arithmetic only as a reconstruction of the supplied extract. Request the position record and the complete observation set before treating it as the method's final DTV result. If the laboratory supplies only selected readings, label the extract as partial. This stops a small displayed spread from concealing locations that were never shown to the reviewer.
Two reports round to the same displayed value
Keep the original reported precision rather than assuming the underlying readings are identical. Compare the raw records and calculation rule at the precision supplied by their authors. If only rounded summaries are available, explain that the detail needed for a closer comparison is missing. Do not add decimal places or reverse-engineer unreported observations to make the reports look comparable.
The result changes after the mounting condition changes
Keep both runs identified and record the stated change. A difference between results can support a request for technical interpretation, but it does not alone prove which component caused the complaint. The reviewer should explain whether the two setups address the same requirement and what additional observations are needed for a cause conclusion. Preserve the original condition record even if a later check is more complete.
Request a traceable MAKEXCAR measurement review
For a MAKEXCAR inquiry, identify the item from the Brake Discs product family and provide its reference, quantity or case identity and the original report. State whether the question concerns lateral runout, DTV or both.
Include the instrument, locations, setup or condition, raw observations and applicable requirement. Mark missing fields clearly. This gives the technical reviewer a focused question and preserves the distinction between what was measured, whether it met a requirement and what the evidence can explain.
Review question: lateral runout / DTV / both: ___; sample or case ID: ___; requested and offered references: ___.
Report file, author and date/revision: ___; part condition: ___; vehicle or fixture and mounting context: ___.
Quantity and unit: ___; instrument ID: ___; contact location or thickness positions/path: ___; raw-record attachment: ___.
Calculation rule and reconstructed result, if applicable: ___; requirement document/reference/version and scope: ___; missing information: ___.
Requested conclusion: recorded measurement / conformity to the named requirement / cause investigation: ___; changes between runs: ___; technical reviewer and open question: ___.
